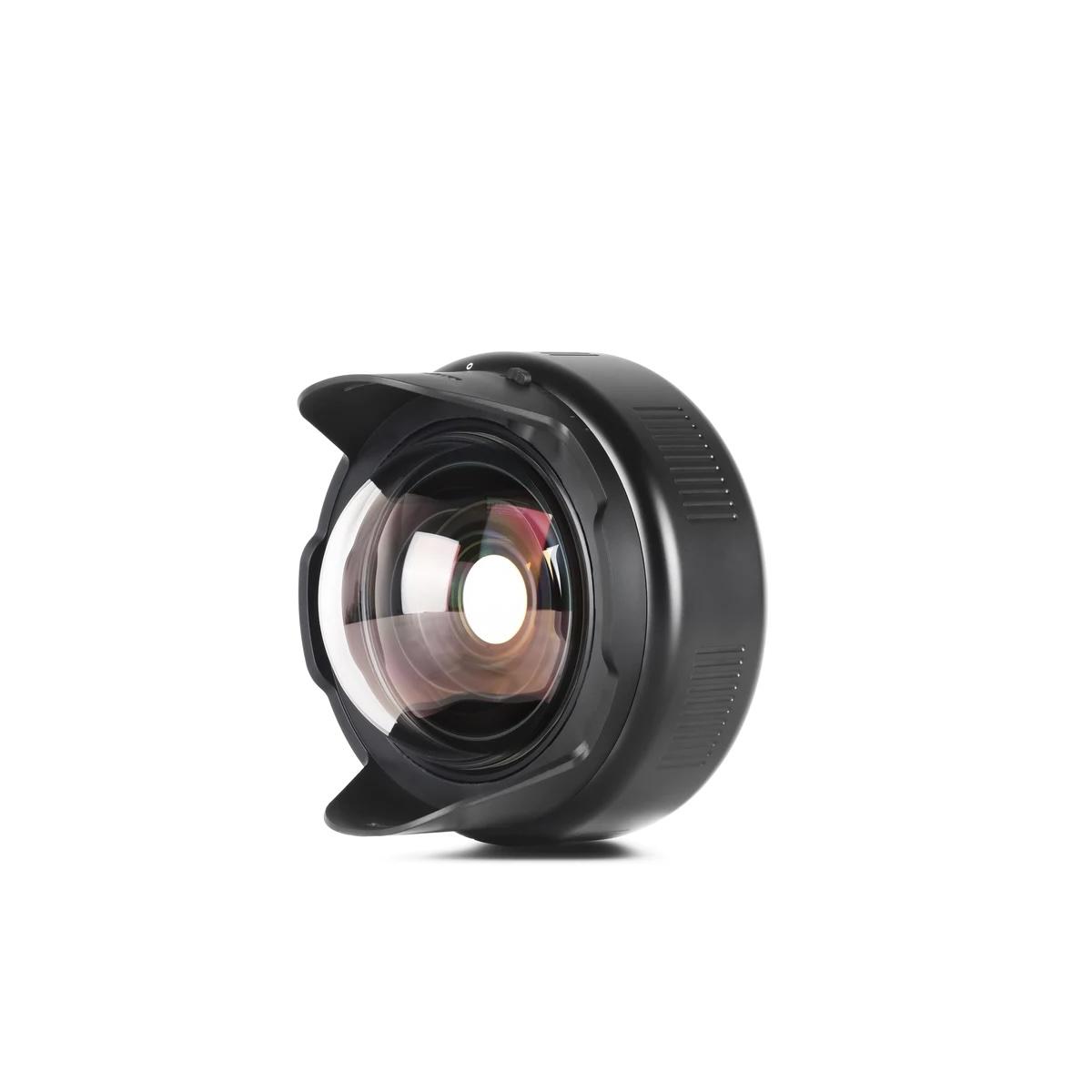

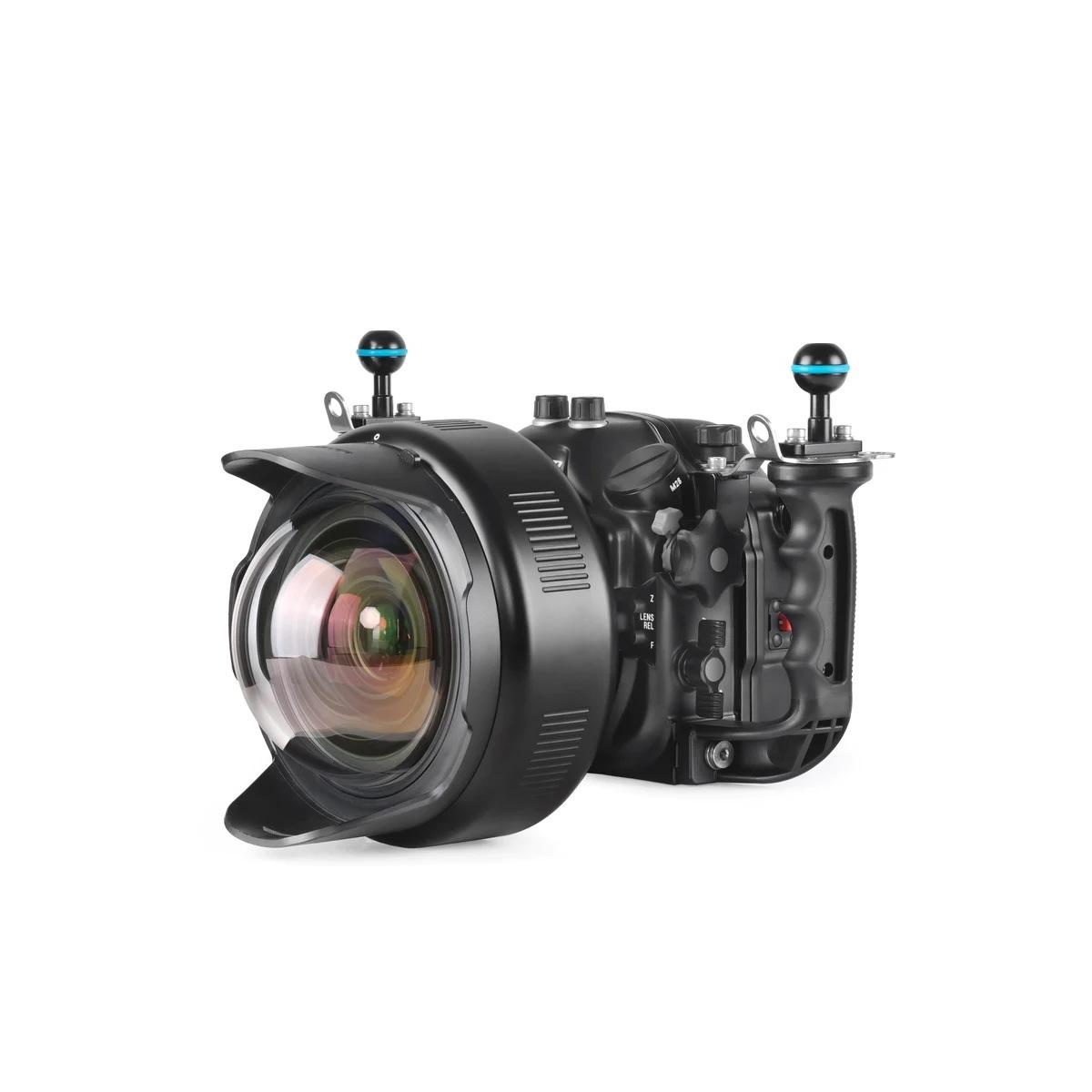

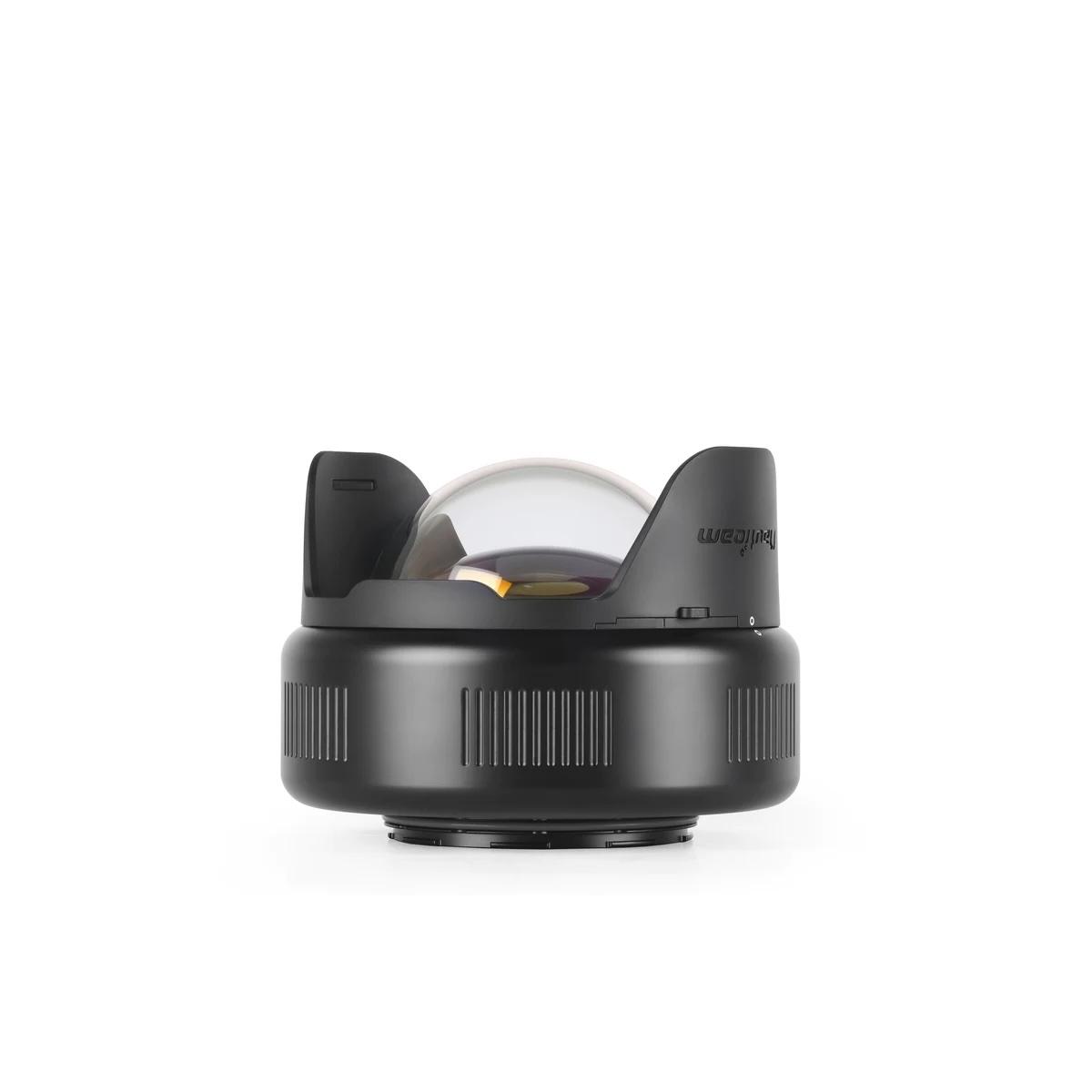

NauticamN120/N100 Fisheye Conversion Port with Integrated Float Collar (FCP) 170 Deg. FOV with Compatible 28mm LensesCod: 85207

INTRODUCING N120/N100 FISHEYE CONVERSION PORT WITH INTEGRATED FLOAT COLLAR (FCP) 170 DEG. FOV WITH COMPATIBLE 28MM LENSES
FOCUS

Much like most of our Water Contact Optics the FCP-1 can focus from its front element to infinity in-water allowing for extremely close-focus fish-eye shooting. Depending on your lens choice you will have a variety of field of view options when zooming through various focal lengths.

BUOYANCY COLLAR
An aluminum float collar is integrated into the FCP-1 and brings the in-water buoyancy 0.4kg negative.

COMPATIBLE LENSES
The FCP-1 is designed to function at the full-frame equivalent focal length of 28mm. A wide variety of lenses are supported, both primes and zooms for Nikon, Canon and Sony as well as Super35 Cinema Systems. Please check the PORT CHART for supported lenses and suggested configurations as some lenses will require extension rings or adapters.

Specifications

Outer Diameter x Length (port mount to front) DIA 198 x 136mm
Outer Diameter x Length (incl. front and rear cap) DIA 198 x 161mm
Weight in air 3.2kg
Buoyancy in water Negative 0.4kg
Body construction Hard-anodized aluminum alloy
Lens construction 6 elements in 5 groups
Lens coatings Anti-corrosion Coating on the outside of the dome. Anti-reflection Coating on other surfaces
Focus distance From front element to infinity
Maximum FOV (underwater)
170 Degrees (Ref. 28mm equivalent)

180 Degrees circular fisheye (Ref 14mm equivalent. *Remove shade

Port Mount N120/N100 Port Mount
Depth rating 100m
Pre-installed Integrated aluminum float collar
